Introduction

The ePaper market has expanded rapidly, offering a range of monochrome and color displays that consume minimal power while delivering high readability. This article compares five Amazon‑listed products: the Waveshare 7.5" E‑Ink Display, the Waveshare 4.2" E‑Paper Display Kit, the Waveshare 7.3" 6‑Color E‑Paper, the Seeed reTerminal E1001 ePaper Display, and the Waveshare 13.3" Color E‑Paper Display. Understanding their differences matters because developers must balance cost, power budget, colour capability, and integration complexity when selecting a display for IoT, industrial, or consumer projects.

Each device shares the core advantage of ePaper technology: an image remains visible without power after a refresh. However, they diverge in resolution, colour depth, driver support, and out‑of‑the‑box readiness. By analysing price, specifications, user feedback, and real‑world performance, readers can make an informed decision that aligns with project constraints.

This guide follows a structured approach. First, individual overviews highlight each product’s strengths. Next, a head‑to‑head comparison examines five critical dimensions. A concise table summarises key specifications. Pros and cons are listed per product, followed by tailored recommendations, a FAQ, and a final verdict.

All data originates from the Amazon listings and verified customer reviews provided in the source material. No speculative claims are made.

Individual Product Overviews

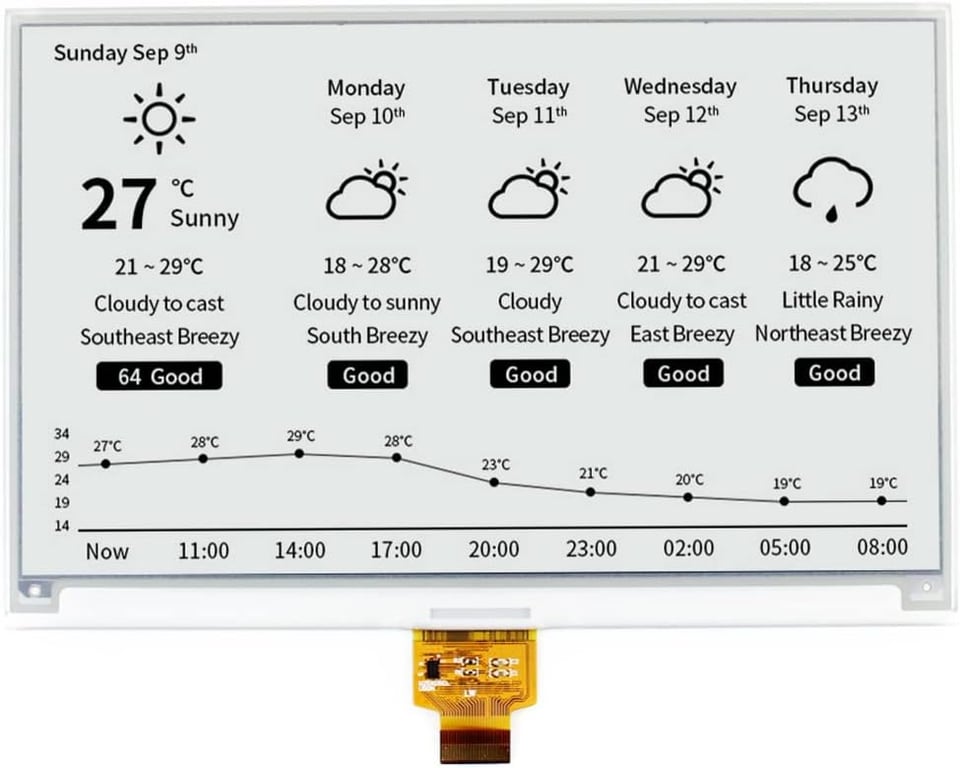

Waveshare 7.5" E‑Ink Display

The Waveshare 7.5" raw ePaper panel offers an 800×480 resolution on a 7.5‑inch diagonal. It connects via SPI and requires an external driver board, giving developers flexibility to pair it with Raspberry Pi, ESP32, or other microcontrollers. The product is priced at $59.99 and carries a 4.1‑star rating from 68 reviews.

Key strengths include ultra‑low power consumption, no backlight, and a wide viewing angle. The display retains the last image indefinitely, which is ideal for shelf‑label or industrial‑instrument applications. A notable positive review states, "Crystal clear display quality – Text, QR codes, and graphics render sharply with excellent contrast" and praises the one‑second full refresh time.

Negative feedback points to outdated documentation, with a reviewer remarking, "Waveshare does not bother to maintain their documentation. Very outdated instructions on wiki." The need for a separate driver board adds a small integration overhead.

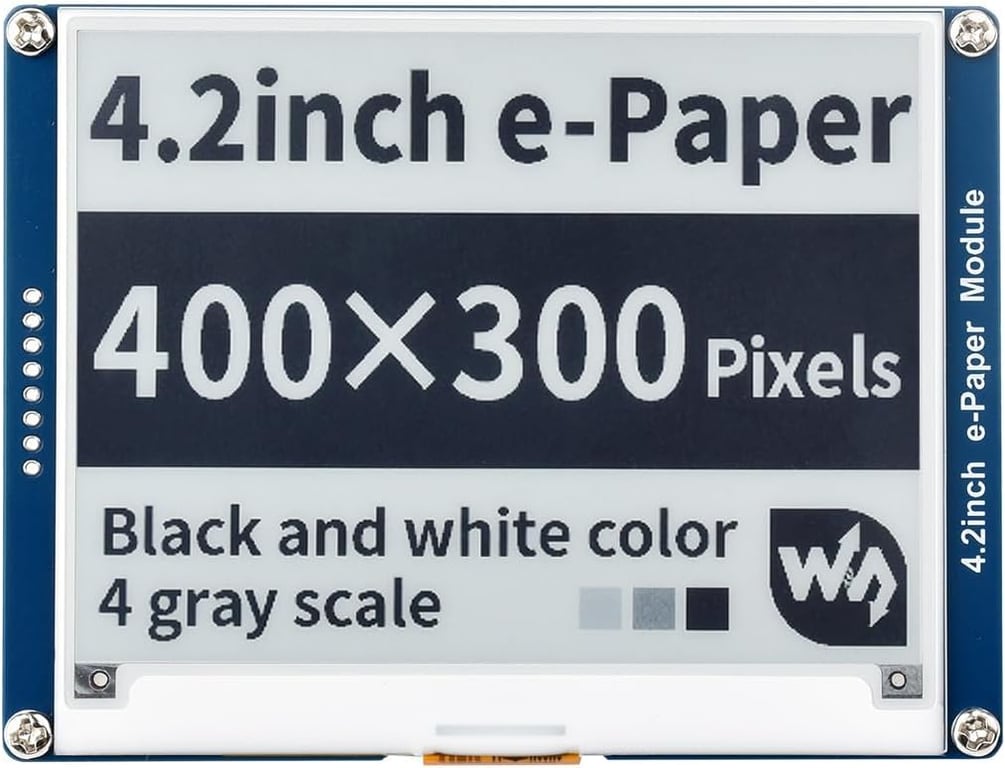

Waveshare 4.2" E‑Paper Display Kit

The 4.2" kit provides a 400×300 monochrome panel, onboard voltage translation for 3.3 V/5 V MCUs, and a complete development kit. Priced at $35.99, it enjoys a 4.2‑star rating from 131 reviewers.

Its compact size, low standby power (<0.017 mW), and 4‑second full refresh make it suitable for portable clocks, small dashboards, or battery‑powered signage. One reviewer highlighted the robust Arduino library support for the Rev2.2 board, stating, "They have the most robust libraries for this version of the board that I have found. They just work on an Arduino in my experience."

Conversely, a reviewer noted limited driver support outside the Arduino ecosystem, mentioning, "I am not using an Arduino and this one has some shaky at best driver support in the Non‑Arduino world." This suggests extra effort for non‑Arduino platforms.

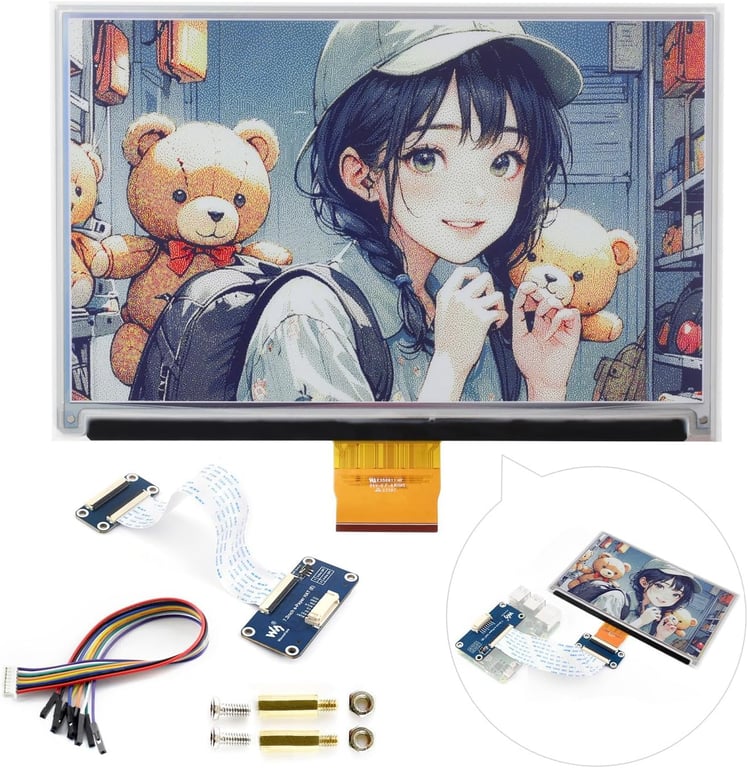

Waveshare 7.3" 6‑Color E‑Paper

This model introduces colour to the ePaper lineup, supporting six colours via E‑Ink Spectra 6 technology. The 7.3" panel resolves at 800×480 and includes an integrated driver board. It is priced at $102.99 and holds a 3.9‑star rating from 28 reviews.

Colour capability enables vibrant data visualisation, such as traffic maps or status dashboards. Positive sentiment includes a user comment, "Great display. At first I had the ribbon cable upside down in the daughter board but once I corrected that it is working great with Raspberry Pi Zero 2 and InkyPy."

However, the product suffers from quality control issues; a reviewer reported a cracked screen out of the box, stating, "Got the package and the box looked like it was chewed off, and then to my shock when I opened it the screen was completely cracked." The higher price reflects the added colour hardware.

Seeed reTerminal E1001 ePaper Display

The reTerminal E1001 is a fully assembled 7.5" monochrome ePaper terminal powered by an ESP32‑S3, complete with a 2000 mAh battery promising up to three months of life in deep‑sleep mode. It sells for $89.99 and has a 4.2‑star rating from 13 reviews.

Its standout feature is the no‑code SenseCraft HMI platform, allowing users to design dashboards via a web interface. One reviewer praised the hardware, noting, "Works like a champ, the housing is metal and feel solid," while also acknowledging software shortcomings: "The hardware is okay but the software is awful. Much of the SenseCraft HMI cloud studio flat out doesn’t work or is incomplete."

The device targets smart‑home and educational use cases where rapid UI development outweighs the need for deep driver customization.

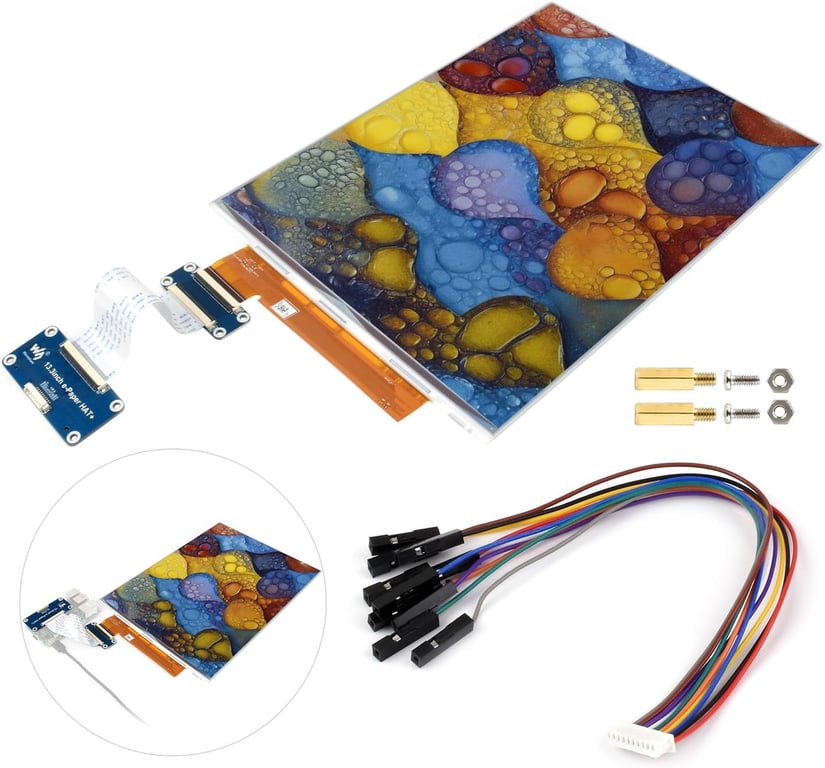

Waveshare 13.3" Color E‑Paper Display

The largest offering is a 13.3" colour ePaper panel with a 1600×1200 resolution, also based on E‑Ink Spectra 6 technology. It includes a Raspberry Pi HAT+ connector for streamlined integration. The price is $313.99 and the rating stands at 3.6 stars from seven reviews.

High resolution and full‑colour rendering make it suitable for signage, retail displays, or detailed data visualisation. A positive reviewer wrote, "Great display, I love that it has the two options for connection, it takes about 30 seconds to display/change the image, but colors are pretty good!"

Negative feedback is severe: "Dont Buy. Does not work. No software Support. They do not support this screen via their software for esp and other methods they advertise will work to control the display." This indicates that the product may require extensive custom development.

Head‑to‑Head Comparison

Price and Value

• Waveshare 4.2" Kit – $35.99 offers the lowest entry cost, making it attractive for hobbyists.
• Waveshare 7.5" Raw – $59.99 provides a larger screen at a modest price, but the need for an external driver adds hidden cost.
• Seeed reTerminal E1001 – $89.99 includes battery, enclosure, and software, delivering high value for turnkey projects.
• Waveshare 7.3" 6‑Color – $102.99 balances colour capability with a mid‑range price.
• Waveshare 13.3" Color – $313.99 is premium; value depends on the requirement for large, high‑resolution colour output.

Features and Specifications

Product	Size (inches)	Resolution	Colour	Interface	Power Refresh	Included Driver Board
Waveshare 7.5" E‑Ink Display	7.5	800×480	Monochrome	SPI	~1 s full refresh	No (requires separate board)
Waveshare 4.2" E‑Paper Kit	4.2	400×300	Monochrome	SPI (3‑wire/4‑wire)	4 s full refresh	Yes (module only, no driver board)
Waveshare 7.3" 6‑Color E‑Paper	7.3	800×480	6‑Color (E‑Ink Spectra 6)	SPI	~1‑2 s full refresh	Yes (integrated driver)
Seeed reTerminal E1001	7.5	800×480	Monochrome	SPI via ESP32‑S3	~1 s full refresh	Yes (fully assembled terminal)
Waveshare 13.3" Color E‑Paper	13.3	1600×1200	6‑Color (E‑Ink Spectra 6)	SPI + HAT+	~30 s full refresh	Yes (integrated driver)

Customer Ratings and Feedback

Ratings range from 3.6 to 4.2 stars. The 4.2" kit leads with 4.2 stars, reflecting broad satisfaction among hobbyists. The reTerminal also scores 4.2 stars, but its lower review count (13) suggests limited exposure. The 7.5" raw panel holds 4.1 stars, praised for image quality but criticized for documentation. The 7.3" colour panel sits at 3.9 stars, with mixed feedback about build quality. The 13.3" colour display has the lowest rating at 3.6 stars, largely due to software support gaps.

Representative quotes include: "Excellent display, critical config details below" (7.5" raw) and "Works like a champ, the housing is metal and feel solid" (reTerminal). Negative sentiments such as "Waveshare does not bother to maintain their documentation" and "Dont Buy. Does not work. No software Support" highlight areas where manufacturers could improve.

Performance and Reliability

• Refresh speed: The 7.5" raw and reTerminal achieve ~1 s full refresh, suitable for dynamic dashboards. The 13.3" colour unit requires ~30 s, limiting frequent updates.
• Power consumption: All devices exhibit ultra‑low standby draw; the 4.2" kit reports <0.017 mW standby, while the reTerminal claims three‑month battery life in deep‑sleep mode.
• Reliability: The 7.5" raw panel is described as "industrial‑grade and reliable once properly configured." The 4.2" kit shows solid performance when correct libraries are used. The 7.3" colour panel suffers from occasional screen damage in transit. The 13.3" colour panel has reported non‑functionality without custom drivers.

Best Use Cases

1. Waveshare 7.5" E‑Ink Display: Large, static signage, logistics labels, and low‑cost IoT dashboards where a separate driver board is acceptable.
2. Waveshare 4.2" E‑Paper Kit: Compact battery‑powered clocks, portable sensors, and educational projects requiring minimal hardware.
3. Waveshare 7.3" 6‑Color E‑Paper: Colour‑rich data visualisation such as weather maps, retail price tags, or museum exhibits.
4. Seeed reTerminal E1001: Turnkey smart‑home panels, classroom displays, and rapid prototyping where no‑code UI design accelerates development.
5. Waveshare 13.3" Color E‑Paper: High‑resolution digital signage, conference room dashboards, and art installations demanding large, vivid colour output.

Pros & Cons

Waveshare 7.5" E‑Ink Display

• Pros: Large 800×480 resolution, ultra‑low power, inexpensive raw panel, strong community support for driver libraries.
• Cons: Requires external driver board, documentation outdated, configuration can be complex for beginners.

Waveshare 4.2" E‑Paper Display Kit

• Pros: Very affordable, built‑in voltage translator, comprehensive development resources, fast 4 s refresh.
• Cons: Limited colour (monochrome only), Arduino‑centric library ecosystem, some timing issues on non‑Arduino platforms.

Waveshare 7.3" 6‑Color E‑Paper

• Pros: Six‑colour capability, integrated driver board, same 800×480 resolution as larger monochrome panel.
• Cons: Higher price, occasional shipping damage, fewer third‑party libraries, learning curve for colour handling.

Seeed reTerminal E1001

• Pros: Fully assembled terminal with battery, metal enclosure, no‑code SenseCraft HMI, ESP32‑S3 performance.
• Cons: Software platform reported as unstable, limited third‑party driver support, higher price than raw panels.

Waveshare 13.3" Color E‑Paper Display

• Pros: Very high resolution (1600×1200), large physical size, full colour via Spectra 6, HAT+ compatibility for Raspberry Pi.
• Cons: Expensive, long refresh time (~30 s), lack of official software support, low review count indicating potential reliability concerns.

Recommendations

For developers seeking a cost‑effective, large monochrome display and are comfortable handling a driver board, the Waveshare 7.5" E‑Ink Display offers the best price‑to‑size ratio.

When the project demands a compact form factor and minimal budget, the Waveshare 4.2" E‑Paper Display Kit is the optimal choice, especially for Arduino‑based prototypes.

For applications that benefit from colour, such as retail price tags or interactive maps, the Waveshare 7.3" 6‑Color E‑Paper provides a balanced mix of size, resolution, and colour depth.

Teams that prefer a ready‑to‑use solution with integrated UI tools should consider the Seeed reTerminal E1001. Its battery life and metal enclosure make it suitable for smart‑home dashboards or classroom displays.

Finally, organisations that require large‑format, high‑resolution colour signage should evaluate the Waveshare 13.3" Color E‑Paper Display, bearing in mind the need for custom driver development and the longer refresh latency.

FAQ

1. Do these ePaper displays need a backlight? All listed products are reflective displays without backlights, which contributes to their low power consumption and excellent outdoor readability.
2. Can I drive the 7.5" raw panel directly from a Raspberry Pi? The raw panel requires an external driver board that implements the UC8179 controller. Once the board is attached, the Pi can communicate via SPI using libraries such as GxEPD2.
3. What is the typical power draw during a refresh? The 4.2" kit specifies 26.4 mW typical refresh power. Larger panels consume more, but all devices draw power only during the refresh cycle; standby power is measured in microwatts.
4. Are the colour ePaper displays suitable for video? No. Colour ePaper panels have refresh times ranging from one to thirty seconds, making them unsuitable for video but ideal for static or slowly changing graphics.
5. Is the SenseCraft HMI required for the reTerminal? No. The reTerminal can be programmed directly using Arduino, PlatformIO, or ESP‑IDF. SenseCraft is an optional cloud‑based no‑code interface for rapid UI creation.
6. Which display offers the longest battery life? The reTerminal E1001 advertises up to three months of operation in deep‑sleep mode with a 2000 mAh battery, outperforming the other panels that rely on external power sources.
7. Can I use these displays with 5 V logic? Yes. All products incorporate onboard voltage translators that accept 3.3 V or 5 V MCU signals.

Conclusion

Each ePaper product examined in this article occupies a distinct niche. The Waveshare 4.2" kit excels in affordability and ease of entry for hobbyists. The Waveshare 7.5" raw panel delivers a larger canvas at a modest price, provided the user can manage an external driver board. The 7.3" 6‑Color model adds colour depth for richer visualisation, while the Seeed reTerminal offers a turnkey solution with built‑in battery and no‑code UI tools. The 13.3" colour display stands out for high‑resolution signage but demands significant development effort.

When selecting an ePaper display, developers should weigh screen size, colour requirements, integration complexity, and budget. By aligning these factors with the strengths and weaknesses outlined above, one can choose the most appropriate display for any project.

Products Mentioned in This Review

Frequently Asked Questions

What are the main differences between monochrome and color ePaper displays from Waveshare and Seeed?

Monochrome models (e.g., 4.2" and 7.5") are cheaper and use less power, while color versions (e.g., 7.3" 6‑Color and 13.3" Color) support richer graphics but consume slightly more energy and cost more.

How does power consumption vary among the listed ePaper models?

All displays draw power only when updating; smaller monochrome units use the least, whereas larger color panels require higher peak currents during refresh.

Which display is best for low‑cost IoT projects?

The Waveshare 4.2" E‑Paper Display Kit offers the lowest price point and minimal power draw, making it ideal for budget‑constrained IoT devices.

What integration considerations are there for the 7.3" 6‑Color ePaper display?

It requires a more capable controller and sufficient RAM to handle six color layers, plus careful timing to manage its longer refresh cycles.

Can ePaper images remain visible without power, and for how long?

Yes, ePaper retains the displayed image indefinitely without power, typically months to years, until the screen is refreshed.
